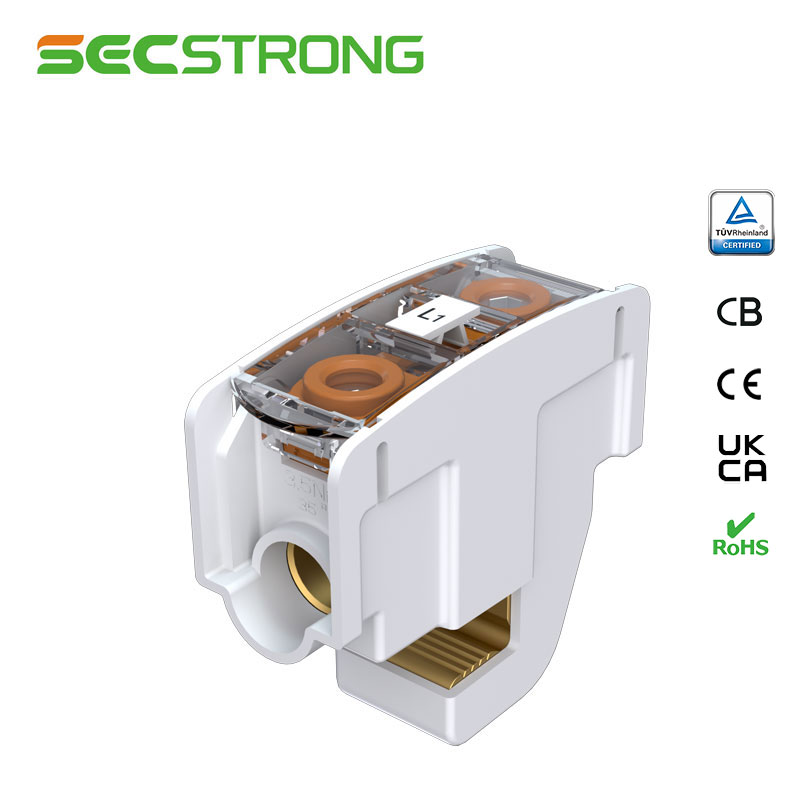

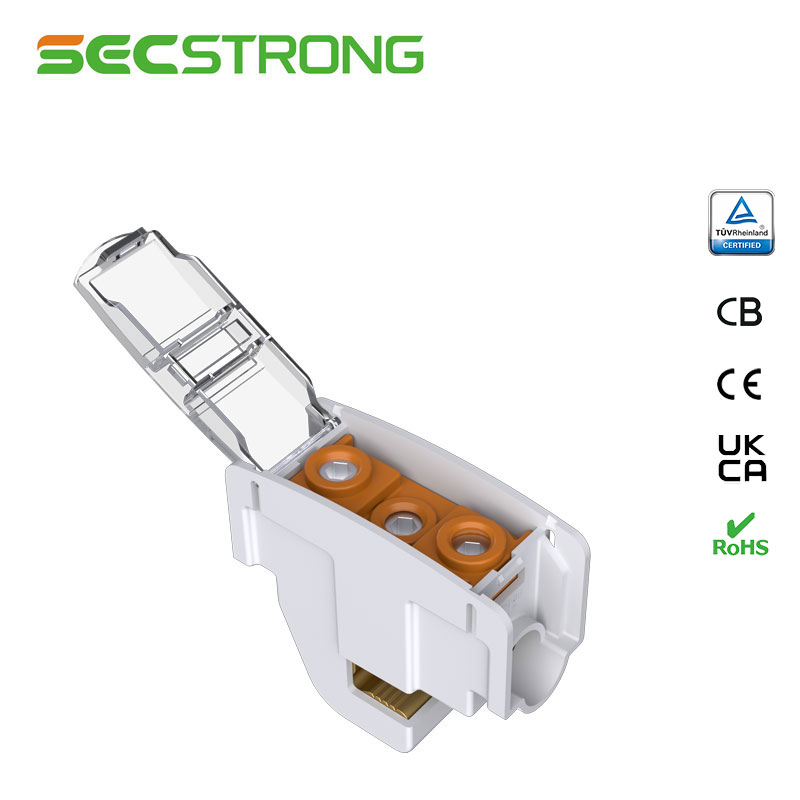

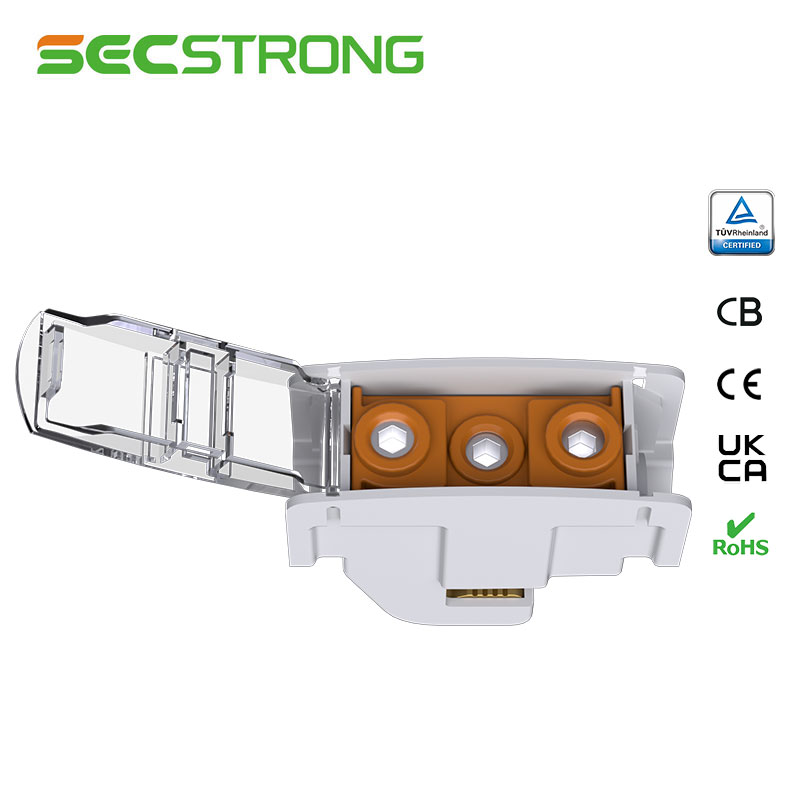

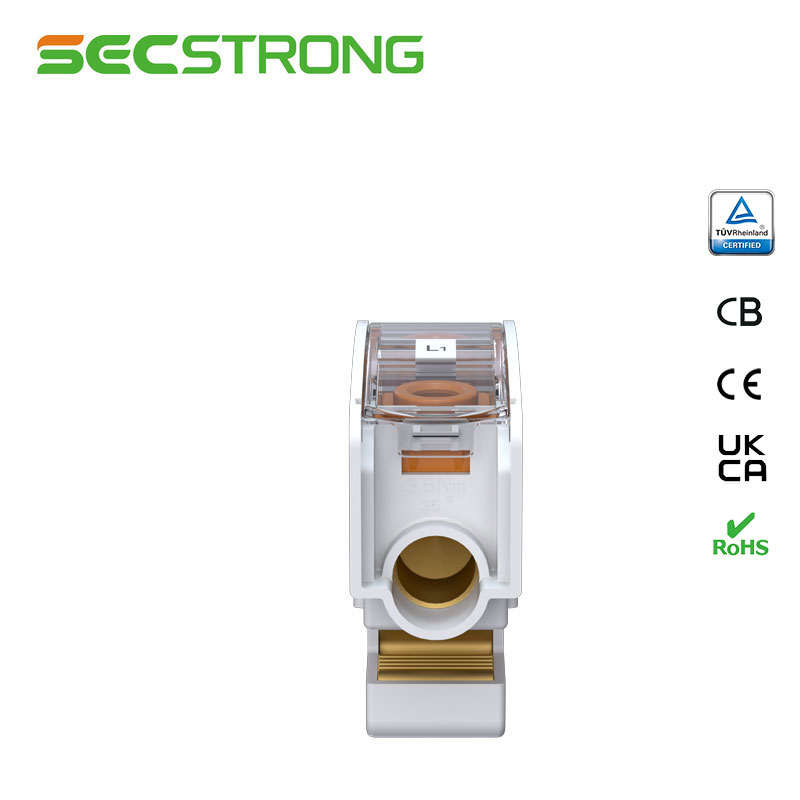

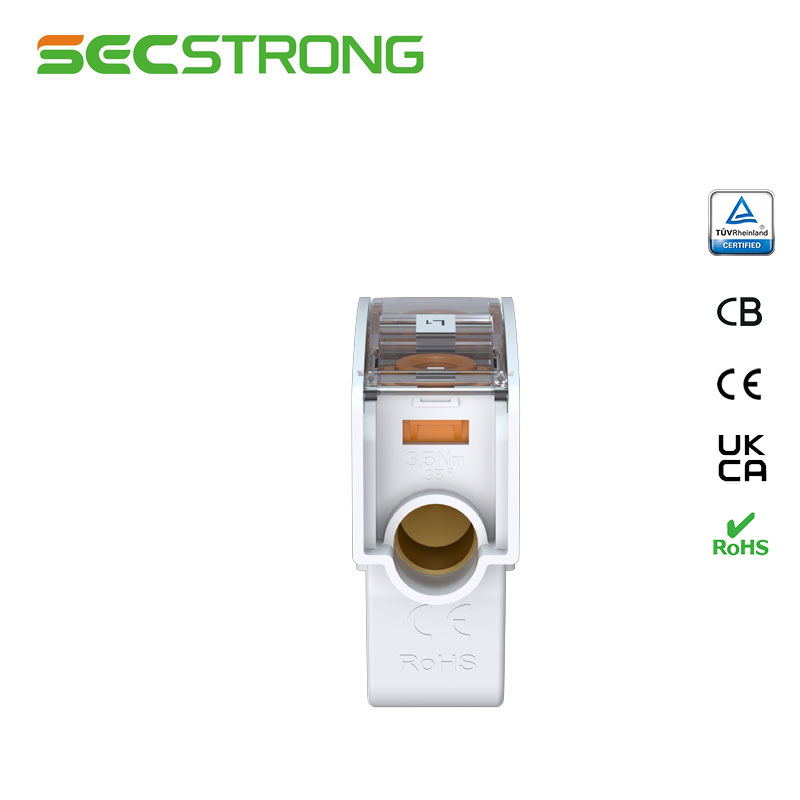

SCC351 Copper Bar Clamp

Return

Product type: SCC351

Standard: IEC/EN 60947-7-1

Color: Brown

Incoming: Copper busbar thickness 3/4/5/6/8/10 mm

Outgoing: Wire/Cable size 2.5 mm² - 35 mm²

Nominal voltage (V): 1000V AC

Nominal current (A): 135 A

Certificate: TUV mark, CB, CE, UKCA, RoHS

Certificate

Message

SCC series Copper Bar Clamp is totally patent designed product by Strong Electric, which offers the best quality, safety installation features, excellent performance in the market.

We are supply the insulation solution for panel system.

All the product already got TUV mark, CB, CE, UKCA, RoHS certificate.

1. Isolated design which is more safety;

2. Different color of cover which can indicated different line clearly;

3. Product gave one incoming and two outgoing which are more flexiable for application;

4. Realiable housing material polyamide V-0 (PA);

Housing:	Flame Retardant Polyamide (PA) V-0 (Halogen-free);
Metal body:	Acid-washed brass;
Screws:	Steel hexagonal screws;
Cover:	Transparent PC;

TUV mark, CB, CE, UKCA, RoHS

IEC/EN60947-7-1 for general copper wire/cable;

SAT	35	1
Product series	Outgoing conductor cross section area	Middle cover's color
	06 mm²	1 Brown (L1)
	16 mm²	2 Black(L2)
	35 mm²	3 Grey(L3)
	50 mm²	N Blue(Neutral)
	70 mm²	E Yellow/Green(PE)

Product type:	SCC351 SCC352 SCC353 SCC35N SCC35E
Standards:	IEC/EN 60947-7-1
Conductor cross-section Cu (mm2):	2.5-35 mm²
Nominal voltage Cu (V):	1000 V
Nominal current Cu (A):	135 A

Assemble

Incoming 1*Copper bar	Copper bar maximum thickness 3/4/5/6/8/10 mm.
	Clamping screw for busbar connection:
	Hexagonal screw	M8 * 20 mm
	Tightening torque	8 Nm
Outgoing 2*35mm² cable/wire	2.5 – 35 mm², round conductor Cu (solid wire and multi wire)
	2.5 – 25 mm², stranded wire with ferrule
	Hexagonal screw	M8 * 13 mm
	Tightening torque	3.5 Nm
	Stripping length	18 mm

Application	Color				Mark	Indication
	New regulation		Old regulation
AC-Single Phase		Brown		Grey	L	Single Phase Line
		Blue		Blue	N	Neutral

Application	Color				Mark	Indication
Application	New regulation		Old regulation		Mark	Indication
AC-Three Phase		Brown		Grey	L1	Three Phase Line 1
		Black		Grey	L2	Three Phase Line 2
		Grey		Grey	L3	Three Phase Line 3
		Blue		Blue	N	Neutral
		Yellow/Green		Yellow/Green	PE	Protective Earth or Ground
