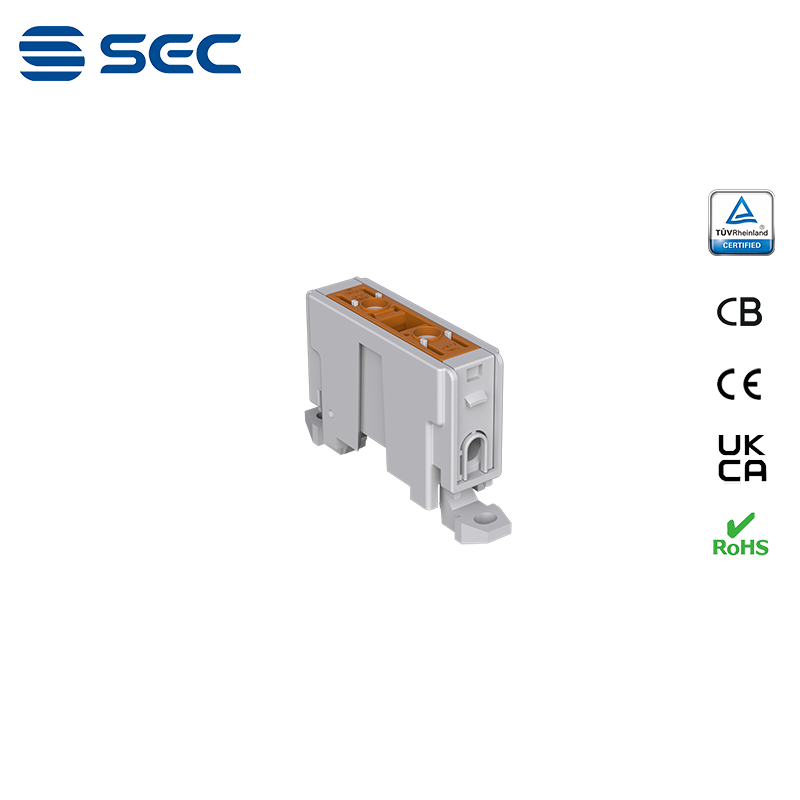

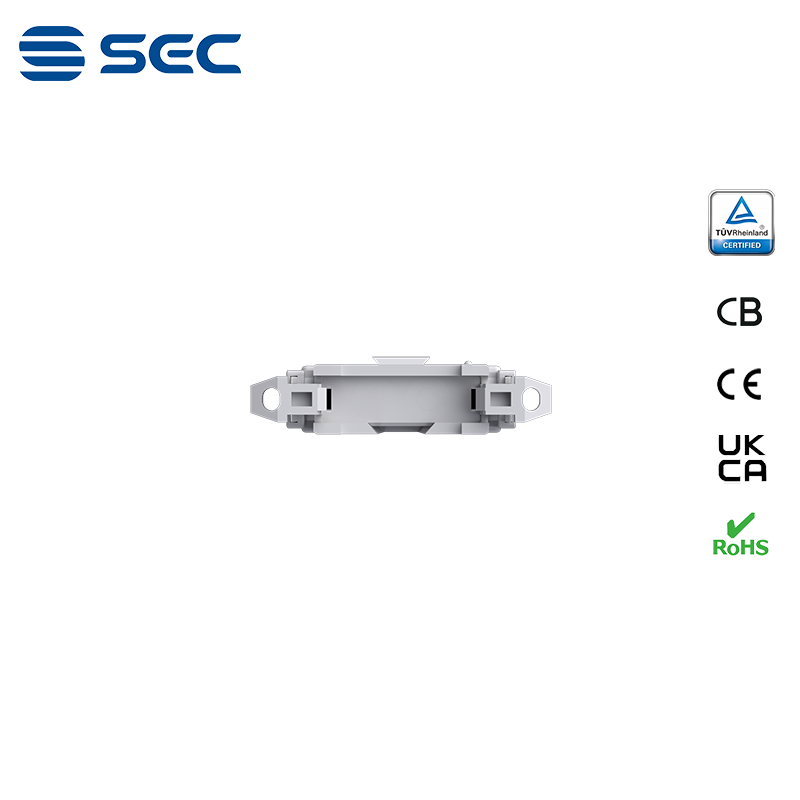

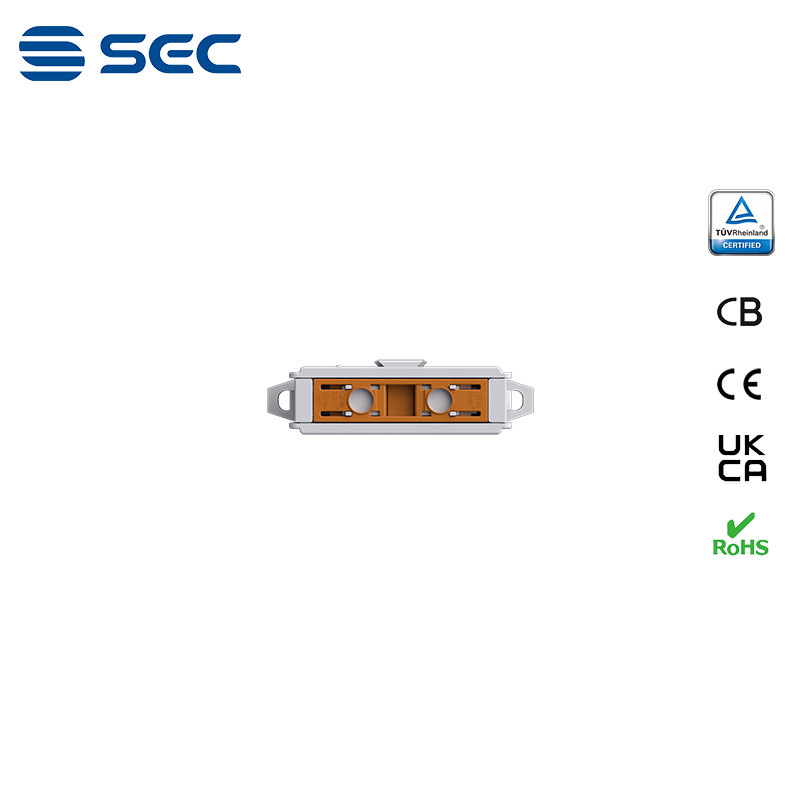

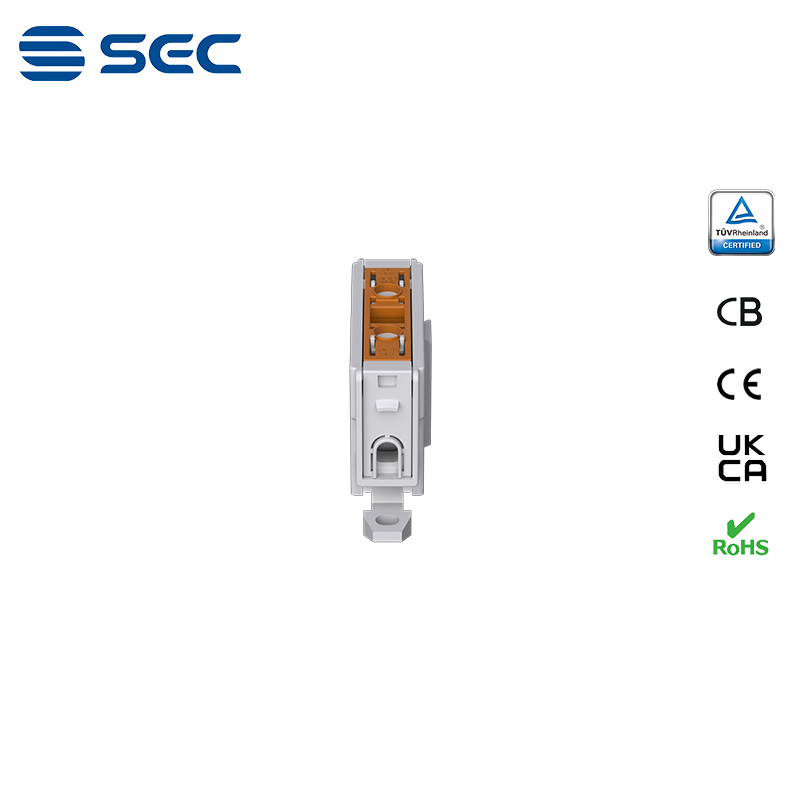

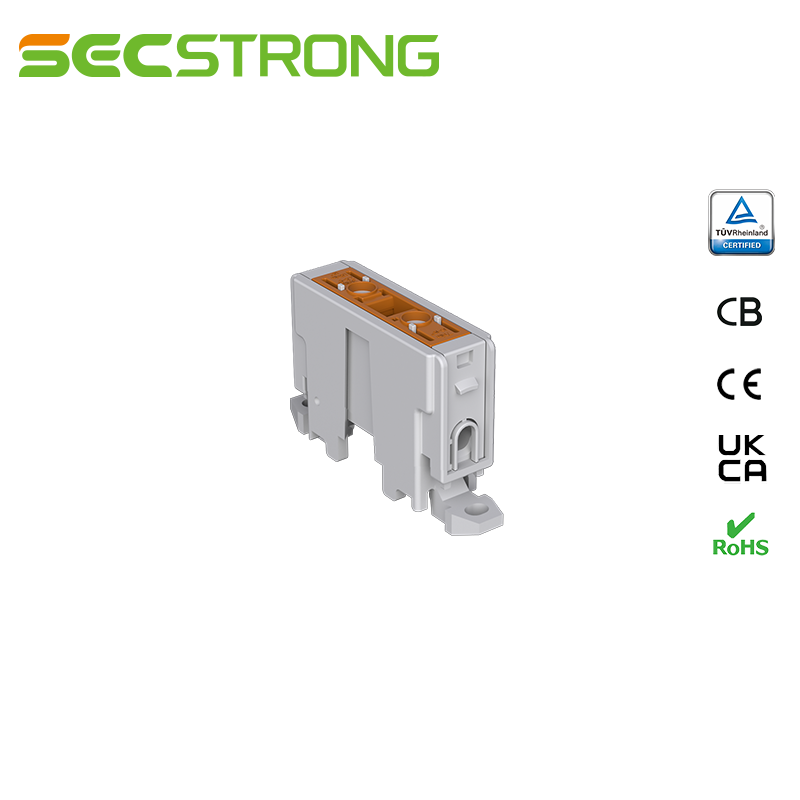

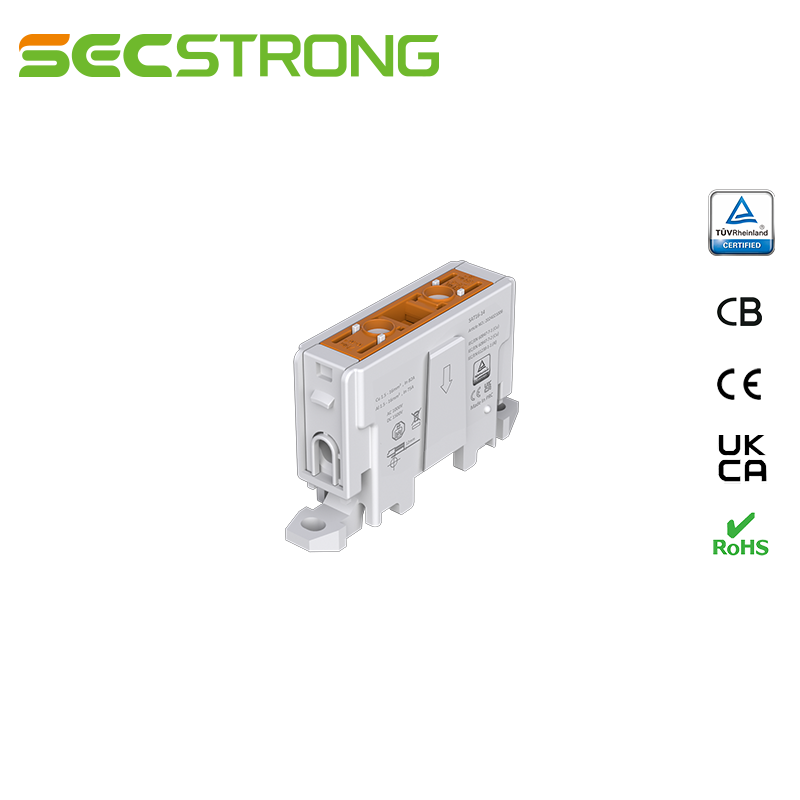

Product type： SAT 16 series
Standards：IEC/EN 60947-7-1(Cu), IEC/EN 60947-7-2(Cu), IEC/EN 61238-1-1(Al)
Conductor cross-section (m㎡)：Cu 1.5-16m㎡ / Al 1.5-16m㎡
Nominal voltage Cu/Al (V)：AC 1000V / DC 1500V
Nominal current Cu/Al (A)：Cu 82A / AI 75A
Certificate：TUV mark, CB, CE, UKCA, RoHS
SAT series Al/Cu universal terminal block is totally patent design product by STRONG ELECTRIC, which offers the best quality, safety installation features in the market. All the product already got TUV mark, CB,CE,UKCA, RoHS certificate. It was designed for both copper conductor and Aluminum conductor. The most important is this terminal block are allowed each pieces of product can connect each other easily.
1. Add on design which is allow any pieces of product can connect each other easily;
2. Good design on side cover and top barrier to reach IP20 protection to avoid finger touch the metal part or any insect go inside the terminal block to cause electric shock risk;
3. Compact design to save tbe space;
4. Quickly and easily din-rail mounting or screw mounting;
5. Reliable housing material polyamide UL94 V0(PA Halogen free)
| Terminal body: | Tinned plating Aluminum |
| Housing: | Flame Retardant Polyamide UL94 V0(PA halogen-free) |
| Screws: | Nickel plating steel hexagonal screw |
| Flame resistance: | Self-extinguishing |
TUV mark, CB, CE, UKCA, RoHS
IEC/EN60947-7-1 for general copper wire/cable;
IEC/EN60947-7-2 for general copper wire/cable (PE/earth connection);
IEC/EN61238-1-1 for general aluminum wire/cable (Classc A terminal block);
SAT series Al/Cu universal terminal block are shorted circuit tested and certified which is class A terminal.
Terminals that have been tested and certified according to IEC/EN61238-1-1 are divided into class A and class B:
Class A terminals are short circuit tested and suitable for both equipment and general use also as feed-in terminals.
Class B terminals are not short circuit tested and can only be used in circuits which are protected with fast acting fuses, not with general use fuse or motor circuit fuses, which are typically use in industrial applications.
| SAT | 16 | - | 1 | 1 |
| Product series | Conductor cross section area | Poles | Cover's Color | |
| 16 mm² | 1 One pole one way | 1 Grey | ||
| 35 mm² | 2 One pole two ways | 2 Blue | ||
| 50 mm² | 3 One pole three ways | 3 Yellow/Green | ||
| 95 mm² | 4 Brown | |||
| 150 mm² | 5 Black | |||
| 240 mm² | 6 Red |
| Product code | Color | Conductor (mm²) | Nominal current In (A) | Nominal insulation voltage Ui (V) | Screw head hexagon diameter (mm) | Tightening torque (Nm) | Mounting | Weight (g) | Pcs/Inner box (pcs) | Pcs/Master carton (pcs) | |
| SAT16-11 | Grey | 1 x Cu 1.5-16 mm² 1 x Al 1.5-16 mm² | Cu 82A Al 75A | AC 1000V DC 1500V | M8 | 1.5Nm (1.5mm²) 3.5Nm (2.5-6mm²) 7Nm (10-16mm²) | DIN-rail | 26.5 | 18 | 414 | |
| SAT16-12 | Blue | ||||||||||
| SAT16-13 | Yellow/Green | ||||||||||
| SAT16-14 | Brown | ||||||||||
| SAT16-15 | Black | ||||||||||
| SAT16-16 | Red | ||||||||||
| Application | Color | Mark | Indication | |||
| New regulation | Old regulation | |||||
| AC-Single Phase | Brown | Grey | L | Single Phase Line | ||
| Blue | Blue | N | Netural | |||
| Application | Color | Mark | Indication | |||
| New regulation | Old regulation | |||||
| AC-Three Phase | Brown | Grey | L1 | Three Phase Line 1 | ||
| Black | Grey | L2 | Three Phase Line 2 | |||
| Grey | Grey | L3 | Three Phase Line 3 | |||
| Blue | Blue | N | Netural | |||
| Yellow/Green | Yellow/Green | PE | Protective Eath or Ground | |||
| Application | Color | Mark | Indication | |
| DC | Black | - | Negative pole | |
| Red | + | Positive pole | ||
1. Switchgear and Controlgear
2. Industrial Automation
3. Solar System
4. Wind Power
5. Mechanical Manufacture
6. Construction
